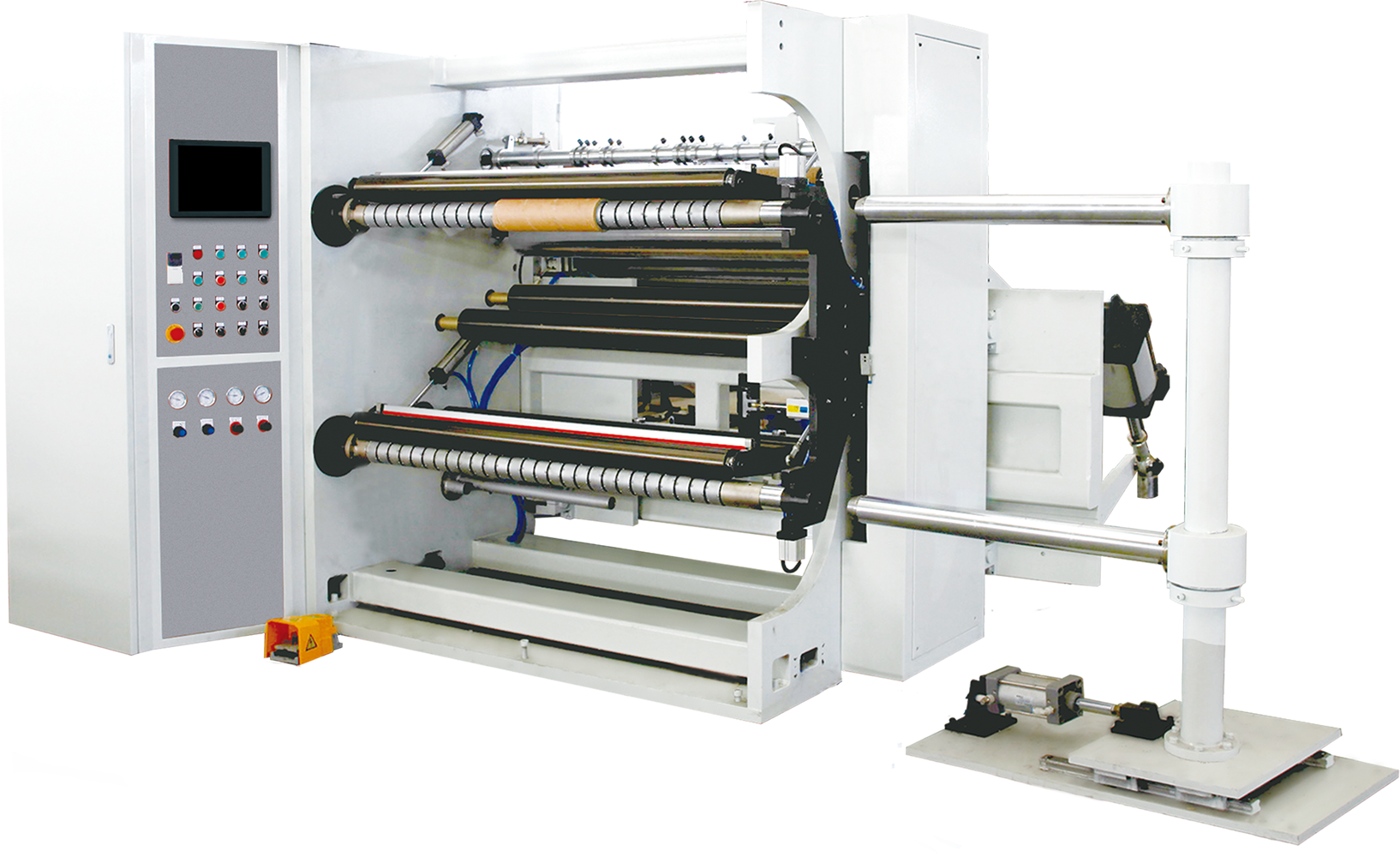

FSS Series Double Shaft Film Slitting Machine
Double Shaft | High Speed | 500-1300mm
  • High Slitting Speed
  • Excellent Flatness
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Substrate
    BOPP, PET, laminated film 0.02-0.2mm, laminated paper, thin paper 25-85gsm
  • Max unwind dia
    Φ600-1000mm
  • Max wind dia
    Φ500mm
  • Max feeding width
    500-1300mm
  • Min slitting width
    50mm
  • Max slitting speed
    450m/min
  • Slitting alignment accuracy
    ±0.10mm
Product Features

This is a slitting machine suitable for slitting BOPP, PET, laminated film & paper, thin paper reels into bobbins.

  • Profinet/EtherCAT control system: Advanced PLC , servo driver & converter control;

  • User-friendly HMI; Busbar power supply, energy-saving and reliable.

  • Unwinding: auto tension control; pneumatic reel feeding.

  • Double shaft winding.

  • Winding: digital taper tension control method, with precise individual control for each bobbin; auxiliary rotating rack for roll unloading.

  • Precise web guiding system (EPC/LPC system).

  • Remote diagnosis and maintenance service.



fss02.jpg    fss03.jpg    fss01.jpg
