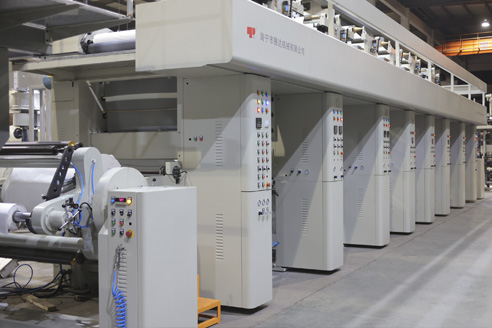

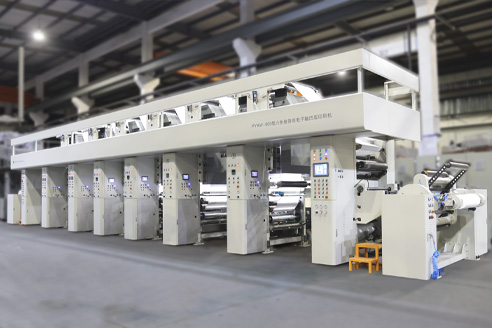

PYAW Series Tipping Paper Gravure Printing Machine
High Speed | 600-1000mm
  • Stable Registration
  • Automatic Splicing
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Colors
    3-8
  • Printing substrate
    paper 12-100gsm
  • Max unwind and rewind dia
    Φ800mm/Φ1000mm
  • Max printing width
    620-1020mm
  • Max printing speed
    300m/min
  • Register accuracy
    ±0.10mm
Product Features

Applications: cigarette tipping paper, inner liner, soft pack, softpack label, ect.

  • Profinet/EtherCAT control system: Siemens PLC, direct-driven servo motor for each color unit’s main drive;

  • User-friendly HMI; Busbar power supply, energy-saving and reliable.

  • Advanced automatic register system with Ethernet.

  • Driven by Electronic-shaft; Shaftless pneumatic-mounting for printing cylinder.

  • Ink jet & delivery circulation system.

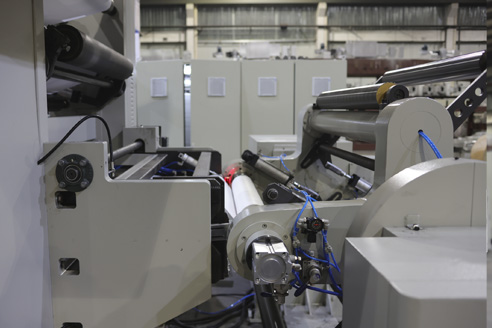

  • Non-deceleration and non-stop automatic paper-splicing.

  • Remote diagnosis and maintenance service.



pyaw01.jpg    pyaw03.jpg    pyaw02.jpg

proudct center
Recommended Products
YAW Series Gravure Printing Machine
This is a high speed web-fed (roll-to-roll) gravure printing machine suitable for Roll-fed Plastic Films (BOPP, PET, PE) & Paper Webs. Profinet/EtherCAT control system: Siemens PLC S7-1500, each station driven by direct-drive servo motor(shaft-less); User-friendly HMI; Busbar power supply, energy-saving and reliable. Electronic-shaft drive; Shaftless pneumatic-mounting for printing cylinder. Double station automatic real changing, non-stop splicing. Self-developed quick-registration function for new products, less waste& time-saving. Automatic registration at vertical and horizontal. Ink circulation system with inking roller: less ink waste, improve the printing effect. Remote diagnosis and maintenance service.
Colors
6-12
Max printing speed
400m/min
Max printing width
850-1250mm

Read More

TM Series Release Film Coating Machine
This is a coating machine suitable for producing release film. Profinet/EtherCAT control system: PLC and converter controls ; User-friendly HMI; Busbar power supply, energy-saving and reliable. Coating method: Anilox roller / Scraper / Micro Gravure / 5-Roller Transfer Coating. Oven with mesh belt driving and negative pressure suction Fully automatic constant tension control by floating roller. Unwinding & winding: singe station/ double station as optional. Remote diagnosis and maintenance service.
Max winding dia
Φ800mm
Max feeding width
800-1600mm
Max coating speed
60-200m/min

Read More

STB Series Release Paper Coating Machine
This is a coating machine suitable for producing release paper. (First glue; Second silicon) Profinet/EtherCAT control system: PLC and converter controls ; User-friendly HMI; Busbar power supply, energy-saving and reliable. Fully automatic constant tension control by floating roller. Double station automatic real changing, non-stop splicing. Remote diagnosis and maintenance service.
Substrate
Paper 30-100gsm
Max unwinding dia
Φ1300mm
Max winding dia
Φ1300mm

Read More

TD-PWH Series Tipping Paper Gravure Printing Machine
Applications: cigarette tipping paper, inner liner, soft pack, sealing tag, rolling paper and other thin paper. Profinet/EtherCAT control system: Siemens PLC, direct-driven servo motor for each color unit's main drive； User-friendly HMl; Busbar power supply, energy-saving and reliable. Advanced automatic register system with Ethernet. Driven by Electronic-shaft; Shaftless pneumatic-mounting for printing cylinder. Ink jet & delivery circulation system. Non-deceleration and non-stop automatic paper-splicing Remote diagnosis and maintenance service.
Printing substrate
paper 12-95gsm
Max printing width
620-1020mm
Max printing speed
350m/min

Read More

SPQ Series Double-Shaft Bobbin Slitting Machine
Applications: cigarette tipping paper, inner liner, rolling paper, etc. Profinet/EtherCAT control system: Advanced PLC, servo driver & converter control; Full-closed-loop tension control by floating rollers; User-friendly HMI; Busbar power supply, energy-saving and reliable. Precise web guiding system (EPC/LPC system) from BST/Pausource. Swing-rotary arm for roll unloading at rewind station, no need to remove the shaft. Zero-speed tension holding, start/stop anti-loosening, easy operation. Remote diagnosis and maintenance service.
Slitting substrate
paper 12-100gsm
Max unwind dia
Φ1200mm
Max slitting speed
500m/min

Read More

FPQ Series Four Shaft Card Paper Slitting Machine
This is a slitting machine suitable for slitting BOPP, PET, laminated film & paper, thin paper reels into bobbins. Profinet/EtherCAT control system: Advanced PLC , servo driver & converter control; Full-closed-loop tension control by floating rollers; User-friendly HMI; Busbar power supply, energy-saving and reliable. Unwinding: auto tension control system; pneumatic reel feeding. Four shaft winding, non-stop auto turnover and auto cutting. Winding: digital taper tension control method, with precise individual control for each bobbin. Side-wall type auto feeding & unloading. Remote diagnosis and maintenance service.
Max unwind dia
Φ600-1000mm
Max wind dia
Φ500mm
Max feeding width
500-1300mm

Read More

DPQ Series Single-Shaft Card Paper Slitting Machine
Single-shaft slitting for cigarette card paper rolls, kraft paper rolls, etc. Profinet / EtherCAT control system: advanced PLC, servo driver & converter control; User-fiendly HiM; Busbar power suppy, energy-saving and reliable. Unwinding tension auto-controlled by floating rollers and frequency controlled motors. Winding speed : constant line speed auto-controlled by frequency controlled motors. Pneumatic swing arm for roll loading/unloading at unwind and rewind station. Remote diagnosis and maintenance service.
Max unwind dia
Φ1600mm
Min bobbin width
20mm
Max slitting speed
350m/min
