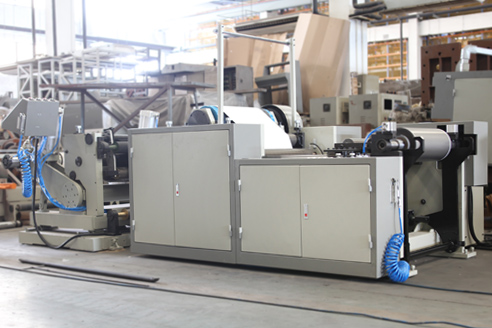

YW Series Embossing Machine
600-1000mm
Technical Specifications
  • Substrate
    paper 30-120gsm
  • Embossing width
    600-1000mm
  • Max embossing speed
    250m/min
  • Dia of unwind and rewind
    Φ1200mm
Product Features

Applications: Embossing processing for cigarette tipping paper, inner liner, rolling paper, etc.

  • Profinet/EtherCAT control system: Advanced PLC, frequency converter control; User-friendly HMI;

  • Busbar power supply, energy-saving and reliable.

  • Pneumatic loading/unloading at unwind and rewind station.

  • Unwinding tension auto-controlled by floating rollers.

  • Precise web guiding system (EPC/LPC system).

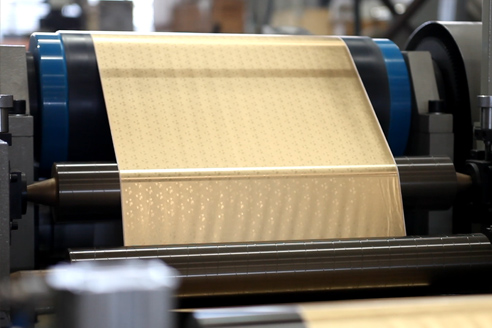

  • Embossing with steel-steel or steel-wool rollers, driven by frequency controlled motors.

  • Embossing pressure controlled by hydraulic/manual pressurization.

  • Remote diagnosis and maintenance service.



yw01.jpg    yw02.jpg    yw03.jpg
