GPQ Series Single-Shaft Bobbin Slitting Machine
Single-shaft | High Speed | 600-1000mm
  • High Slitting Speed
  • Excellent Flatness
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Slitting substrate
    paper 12-100gsm
  • Unwind width
    600-1000mm
  • Max unwind dia
    Φ1200mm
  • Max rewind dia
    Φ600mm
  • Max slitting speed
    350m/min
  • Slitting alignment accuracy
    ≤±0.10mm
  • Surface flatness
    ≤±0.15mm
  • Rewinding method
    Single-shaft
Product Features

This is a slitting machine suitable for slitting nonwoven, polyesterfilm and paper reels into bobbins.

  • Profinet/EtherCAT control system: advanced PLC , servo driver & converter control;

  • Full-closed-loop tension control by floating rollers, User-friendly HMl;

  • Busbar power supply, energy-saving and reliable.

  • Precise web guiding system (EPC/LPC system) from BST/Pausource.

  • Pneumatic swing arm for roll loading/unloading at unwind and rewind station.

  • Zero-speed tension holding, start/stop anti-loosening, easy operation.

  • Remote diagnosis and maintenance service.

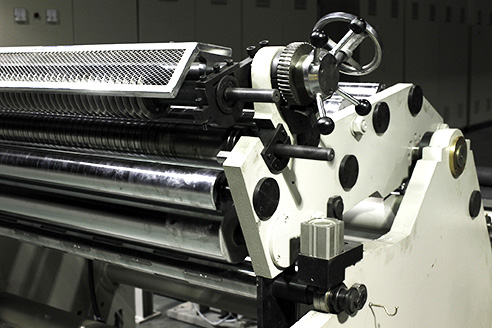

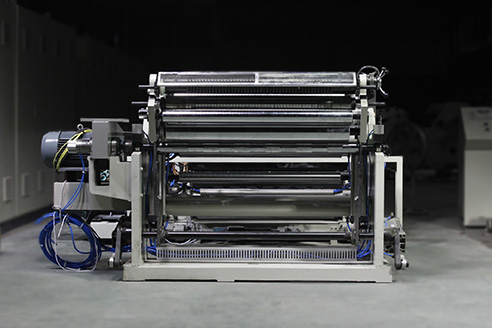

gpq01.jpg    gpq02.jpg    gpq03.jpg
