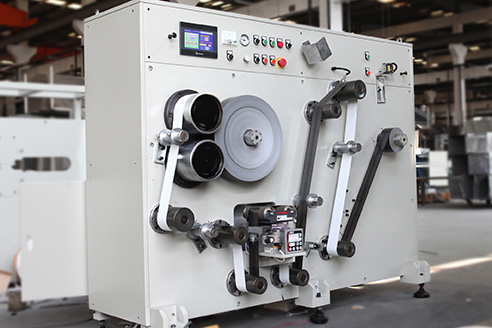

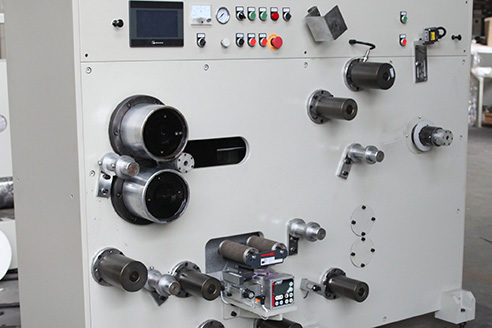

GDFJ Series Rewinding Machine
Single-shaft | High Speed | 100-180mm
  • High Rewinding Speed
  • Tight Wound
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Substrate
    12-95gsm
  • Max rewind dia
    Φ500mm
  • Max rewind width
    160mm
  • Max rewind speed
    400m/min
  • Surface flatness
    ±0.10mm
Product Features

Applications: cigarette tipping paper, inner liner, cigarette paper, rolling paper, card paper, etc.

  • For quality inspection and reuse of defective bobbins.

  • Profinet/EtherCAT control system: Advanced PLC , servo driver & converter control; User-friendly HMI;

  • Busbar power supply, energy-saving and reliable.Optional web guiding system (EPC/LPC system).

  • Center/surface driven rewinding. Precise mechanical air shaft for unwind/rewind.

  • High surface flatness; Auto-stop at set length or lack/break of material.

  • Remote diagnosis and maintenance service.



fjj01.jpg    fjj02.jpg    fjj03.jpg


gdfj3-03.jpg    gdfj3-01.jpg    gdfj3-02.jpg
