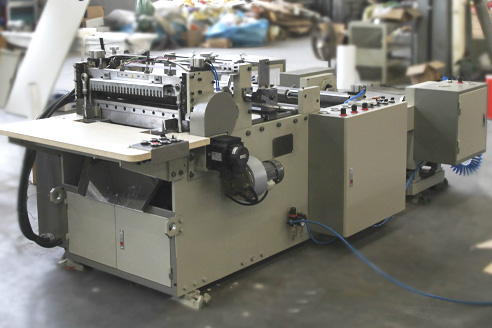

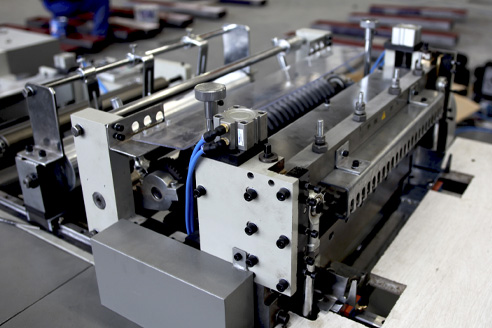

SDB Series Label Cutting Machine
For Label | Roll to Sheet | Transverse & Longitudinal Cutting | 500mm
  • Uniform Tension
  • Auto Correction
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Max. material width
    520mm
  • Max. unwind dia
    Φ600mm
  • Transverse cutting length
    30-1000mm
  • Longitudinal cutting width
    >20mm (customized)
  • Transverse/Longitudinal cutting accuracy
    ±0.10mm
  • Transverse operating frequency
    20-120 time/min
Product Features

Simultaneously at fixed width and length, roll-to-sheet cutting for cigarette sealing stamps, labels, soft packs, etc.

  • Profinet/EtherCAT control system: advanced PLC, servo driver & converter control; User-friendly HMl;

  • Busbar power supply, energy-saving and reliable.

  • Precise web guiding system.

  • Longitudinal cutting width adjustable.

  • Transverse cutting length settable, with photoelectric error correction.

  • Remote diagnosis and maintenance service.




sdb01.jpg    sdb03.jpg    sdb02.jpg
