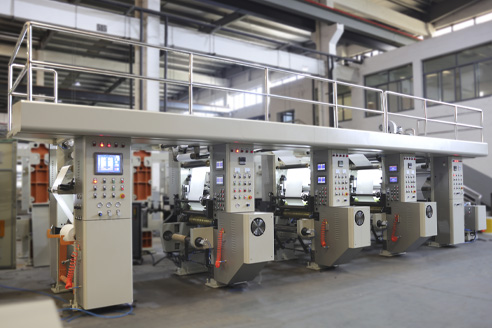

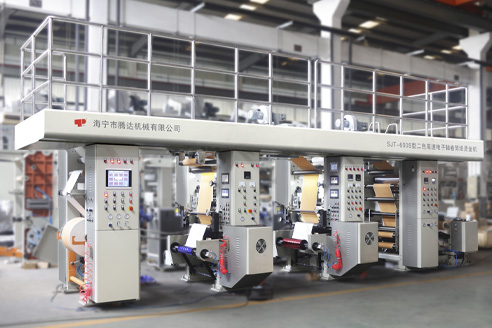

SJT Series Tipping Paper Hot Foil Stamping Machine
Shaftless-driven (Electronic Shaft) | Auto-register | High Speed | 600mm
  • High-Speed Hot Stamping
  • Tight Winding
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Color
    1-4
  • Stamping substrate
    paper 12-100gsm
  • Max effective stamping width
    600mm (450mm for tipping paper)
  • Max paper unwind and rewind dia
    Φ900mm
  • Max foil unwind and rewind dia
    Φ500mm
  • Max stamping speed
    120m/min
  • Register accuracy
    ±0.10mm
  • Foil jump-stamping accuracy
    ±0.10mm
Product Features

Applications: cigarette tipping paper, inner liner, soft pack, rolling paper, gift paper, other paper rolls and film.

  • Auto register: stamping registers printing at 1st color, stamping registers printing/stamping at 2nd -4th color.

  • Total automatic pre-registration setting to reduce start-up waste.

  • Stamping without registration marks (virtual registration marks) for high precision and reducing foil width and costs.

  • Foil Jump-stamping function: improve foil utilization rate, significantly reduce costs.

  • Profinet/EtherCAT control system: Siemens PLC S7-1500, full servo driver & servo motor control;

  • Full-closed-loop tension control by floating rollers; User-friendly HMI;

  • Busbar power supply, energy-saving and reliable.

  • Direct-driven servo motor for each color unit’s main drive.

  • Advanced automatic register system with Ethernet.

  • Precise web guiding system (EPC / LPC system) from BST.

  • Remote diagnosis and maintenance service.



sjt01.jpg    sjt03.jpg    sjt02.jpg
