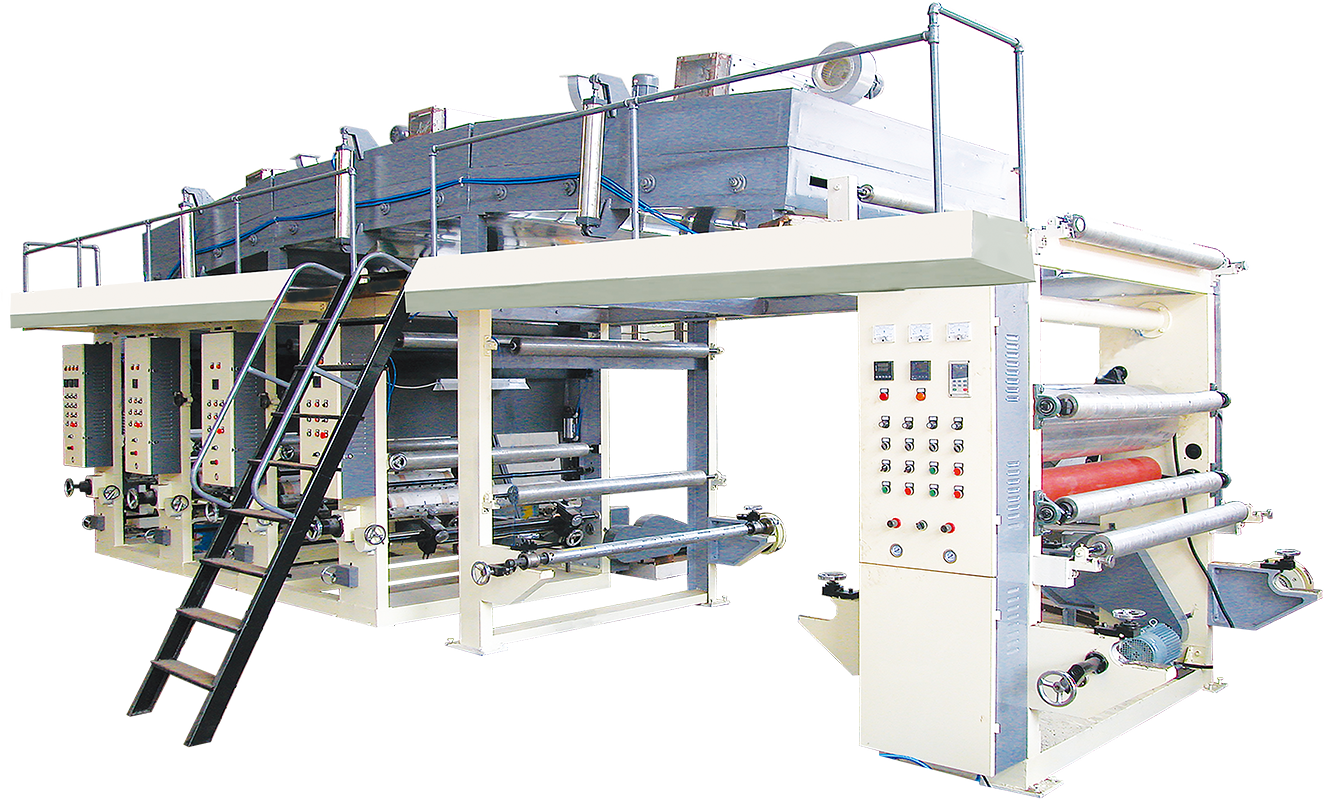

YGF Series Protective Film Printing And Laminating Machine
High Speed | 1300-1600mm
  • High-Speed Laminating
  • Auto Tension
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Stations
    1-3rd Printing, 4th Gluing
  • Substrate Spec
    3”Φ600mm
  • Max printing width
    600-1600mm
  • Max printing speed
    250m/min
  • Printing cylinder dia
    Φ120-300mm
  • Register accuracy
    ±0.10mm
Product Features

This is a high-speed printing and laminating machine suitable for producing protective film.

  • Profinet/EtherCAT control system: PLC and converter control; User-friendly HMI; Busbar power supply, energy-saving and reliable.

  • Fully automatic constant tension control by floating roller.

  • Double-roll or three-roll embossing device.

  • Automatic registration.

  • Anilox roller gluing, dry laminating.

  • Remote diagnosis and maintenance service.
