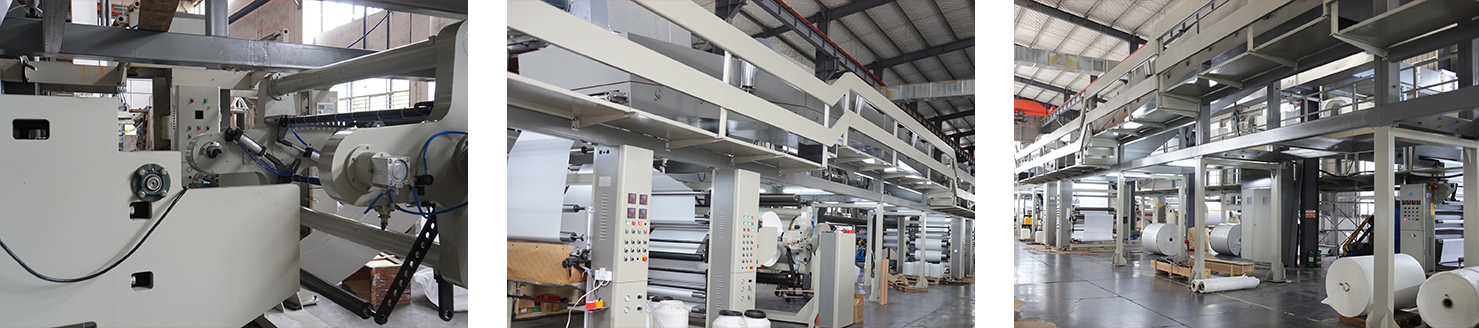

STB Series Release Paper Coating Machine
High Speed | 1000-1300mm
  • High-Speed Coating
  • Automatic Splicing
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Substrate
    Paper 30-100gsm
  • Max unwinding dia
    Φ1300mm
  • Max winding dia
    Φ1300mm
  • Max feeding width
    1000-1300mm
  • Max coating speed
    500m/min
  • Oven heating method
    Electric / Steam / Natural gas
Product Features

This is a coating machine suitable for producing release paper. (First glue; Second silicon)

  • Profinet/EtherCAT control system: PLC and converter controls ; User-friendly HMI; Busbar power supply, energy-saving and reliable.

  • Fully automatic constant tension control by floating roller.

  • Double station automatic real changing, non-stop splicing.

  • Remote diagnosis and maintenance service.
