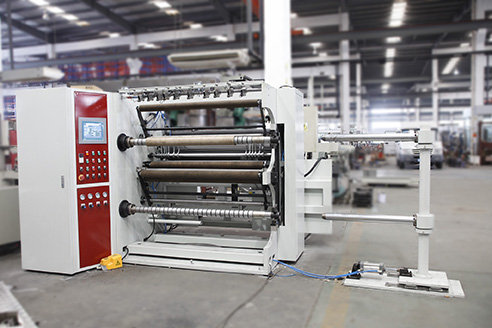

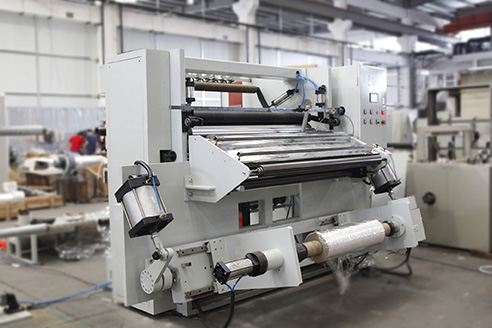

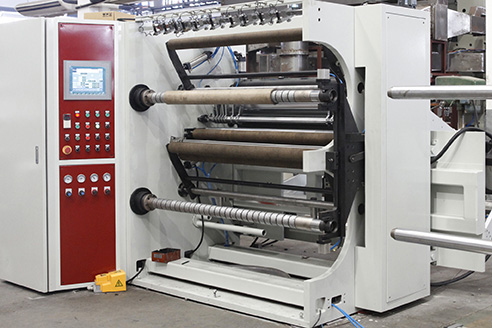

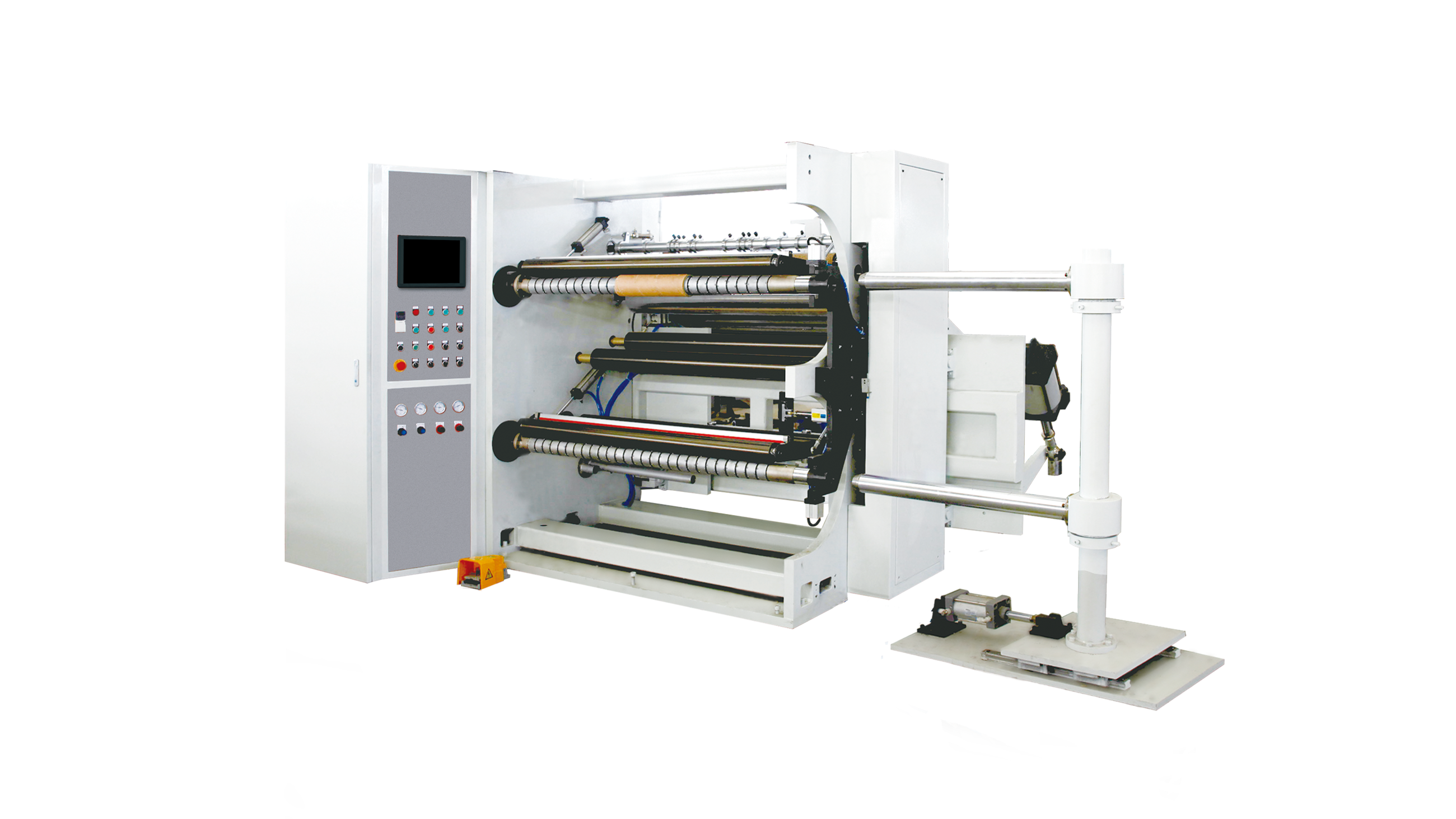

FSS Series Double-shaft Film Slitting Machine
Double-shaft | High Speed | 600-1300mm
  • High Slitting Speed
  • Excellent Flatness
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Substrate
    film 0.012-0.05mm
  • Unwind width
    Unwind width: 600-1300mm
  • Max film unwind dia
    Φ800mm
  • Max film rewind dia
    Φ500mm
  • Max slitting speed
    400m/min
  • Slitting alignment accuracy
    ±0.15mm
  • Surface flatness
    ≤±0.20mm
Product Features

Applications: cigarette BOPP, PET, laminated film, laminated paper, thin paper and etc.

  • Profinet/EtherCAT control system: Advanced PLC , servo driver & converter control; Full-closed-loop tension control by floating rollers;

  • User-friendly HMI; Busbar power supply, energy-saving and reliable.

  • Unwinding: auto tension control, auto pneumatic roll loading.

  • Rewinding: digital taper tension control, with precise individual control for each bobbin; auxiliary rotating rack for roll unloading.

  • Precise web guiding system (EPC/LPC system).

  • Remote diagnosis and maintenance service.
