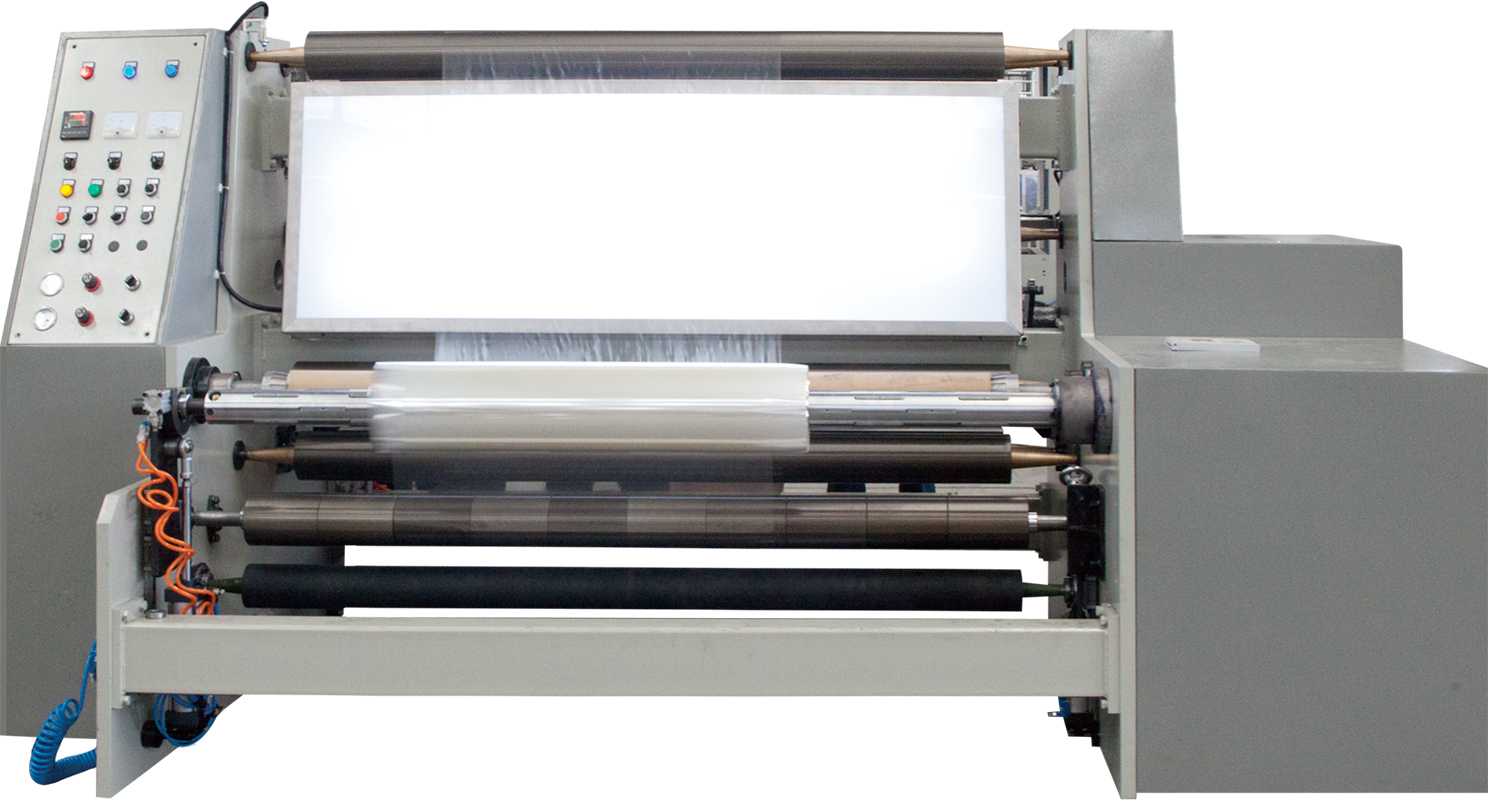

FJ Series Film Rewinding Machine
High Speed|600-1300mm
  • Auto-Tension
  • High Rewinding Speed
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Substrat
    Plastic film 0.012-0.3mm , Paper12-85gsm
  • Max unwinding dia
    Ф600-800mm
  • Max windina dia
    Ф300mm
  • Max rewinding width
    600-1600mm
  • Paper tube outer dia
    Ф76mm, customized
  • Max rewinding speed
    350m/min
Product Features

This is a rewinding and inspection machine suitable for plastic film and paper.

  • Profinet/EtherCAT control system: advanced PLC; User-friendly HMl;Busbar power supply, energy-saving and reliable.

  • Roll forward and reverse、automatic speed lifting, speed set, auto-set length, auto-shutdown, shaftless waste winding and etc.

  • Inline quality inspection system as optional.
