GPQ Series Single-Shaft Bobbin Slitting Machine
Single-shaft | High Speed | 600-1000mm
  • High Slitting Speed
  • Excellent Flatness
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Slitting substrate
    paper 12-100gsm
  • Unwind width
    600-1000mm
  • Max unwind dia
    Φ1200mm
  • Max rewind dia
    Φ600mm
  • Max slitting speed
    350m/min
  • Slitting alignment accuracy
    ≤±0.15mm
  • Surface flatness
    ≤±0.20mm
  • Rewinding method
    Single-shaft
Product Features

Applications: cigarette tipping paper, inner liner, rolling paper, other thin paper and laminated paper.

  • Precise web guiding system (EPC/LPC system).

  • Tension of paper unwind: auto-controlled by floating rollers and frequency controlled motors (converter with built-in PLC function).

  • Speed of paper rewind: constant line speed controlled by frequency controlled motor (converter with built-in PLC function).

  • User-friendly HMI.

  • Pneumatic swing arm for roll loading/unloading at unwind and rewind station.

  • Zero-speed tension holding, start/stop anti-loosening, easy operation.

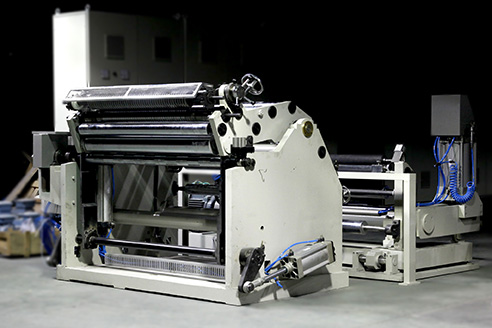

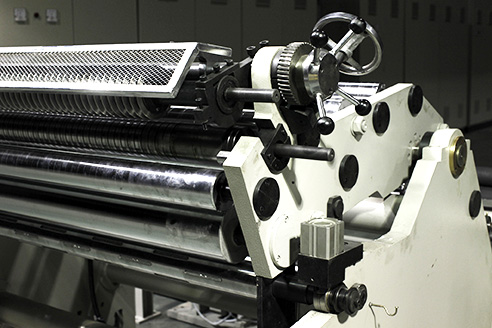

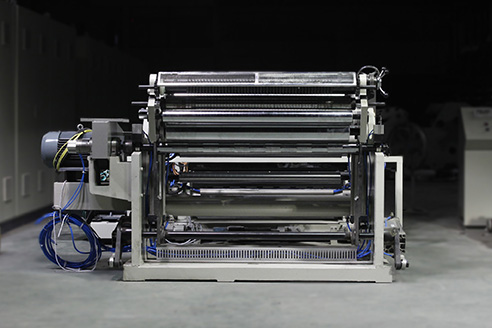

gpq01.jpg    gpq02.jpg    gpq03.jpg
