TB Series Two-Color Coating Machine For Release Paper
1000-1300mm
  • High-Speed Coating
  • Auto Tension
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Substrate
    Paper 30-100gsm
  • Max unwinding and winding dia
    Φ1300mm
  • Max feeding width
    1000-1300mm
  • Max coating speed
    250m/min
  • Coating weight
    10-20g/㎡, adjustable
Product Features

This is a two-color coating machine suitable for producing release paper. (First glue; Second silicon)

  • Profinet/EtherCAT control system: PLC and converter control; User-friendly HMI; Busbar power supply, energy-saving and reliable.

  • Fully automatic constant tension control by floating roller.

  • Single station at unwinding and winding unit.

  • Oven with electric heating method.

  • Remote diagnosis and maintenance service.

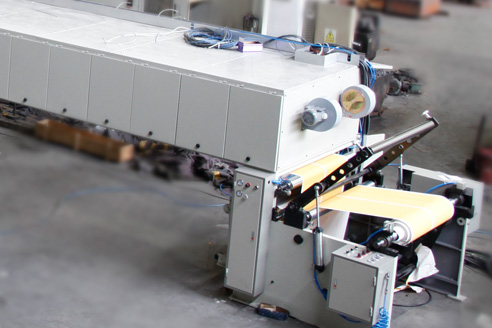

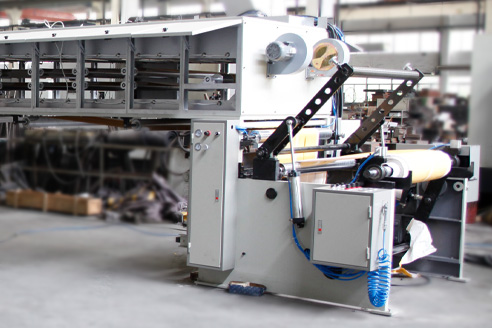

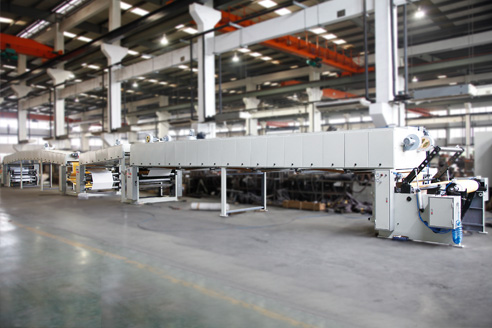

tb01.jpg    tb02.jpg    tb03.jpg
