SFTB Series Lamination, Coating and Stripping Machine
Inner Liner | 600-1300mm
  • High Production Speed
  • Auto Tension
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Substrate
    Paper (inner liner base paper 30-120gsm / card paper 80-300gsm) film (aluminum foil 0.005-0.025mm / PET/thin film 0.012-0.025mm)
  • Max unwind width
    600-1300mm
  • The effective width
    680-1380mm
  • Max unwind and rewind dia
    Inner liner base paper: Φ1200mm Card paper: Φ1600mm Aluminum foil / thin film: Φ500mm
  • Max running speed
    180m/min
Product Features

Applications: Back-coating, wet lamination, printing, coating, stripping, embossing processes to produce inner liner and other laminated paper.

  • One machine for multiple processes.

  • Profinet/EtherCAT control system: Advanced PLC, User-friendly HMI; Busbar power supply, energy-saving and reliable.

  • Fully Synchronously controlled by servo drivers, converters and motors; Full-closed-loop tension control by floating rollers.

  • Extra smooth and flat surface, no warping, no wrinkles, no scratches.

  • Remote diagnosis and maintenance service.

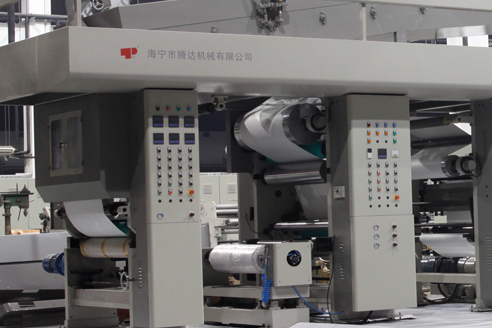

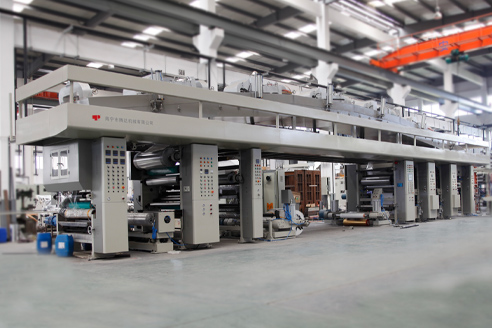

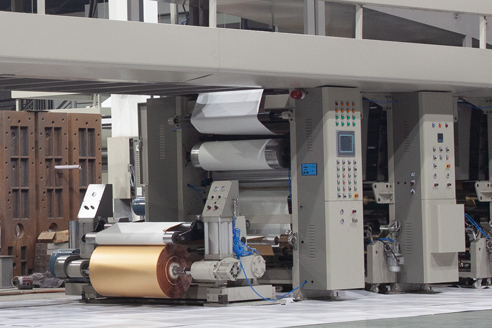

sftb2-01.jpg    sftb2-02.jpg    sftb2-03.jpg
