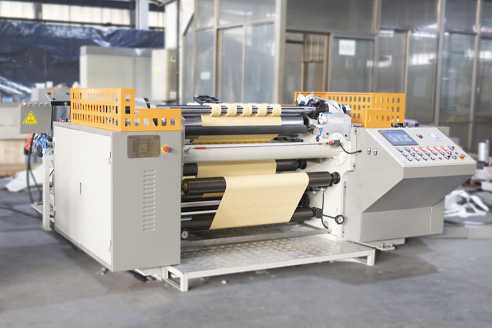

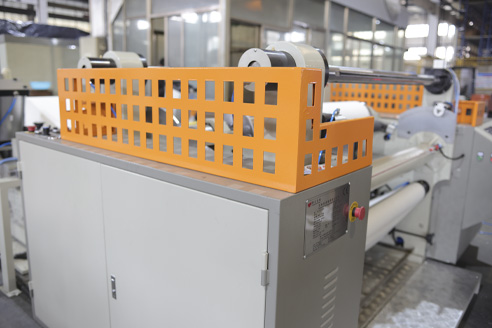

SPQ Series Double-Shaft Bobbin Slitting Machine
Double-shaft | High Speed | 600-1000mm
  • High Slitting Speed
  • Precise Cutting
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Slitting substrate
    paper 12-100gsm
  • Unwind width
    600-1000mm
  • Max unwind dia
    Φ1200mm
  • Max rewind dia
    Φ500mm
  • Max slitting speed
    500m/min
  • Slitting alignment accuracy
    ≤±0.10mm
  • Surface flatness
    ≤±0.15mm
  • Rewinding method
    Double-shaft
Product Features

Applications: cigarette tipping paper, inner liner, rolling paper, etc.

  • Profinet/EtherCAT control system: Advanced PLC, servo driver & converter control;

  • Full-closed-loop tension control by floating rollers; User-friendly HMI;

  • Busbar power supply, energy-saving and reliable.

  • Precise web guiding system (EPC/LPC system) from BST/Pausource.

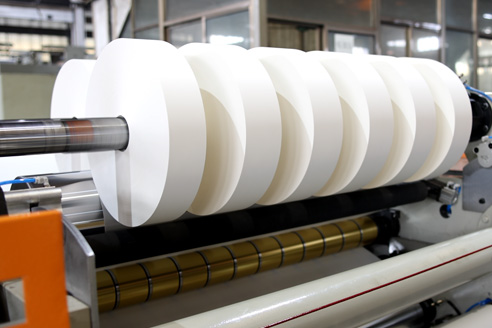

  • Swing-rotary arm for roll unloading at rewind station, no need to remove the shaft.

  • Zero-speed tension holding, start/stop anti-loosening, easy operation.

  • Remote diagnosis and maintenance service.




spq01.jpg    spq02.jpg    spq03.jpg
