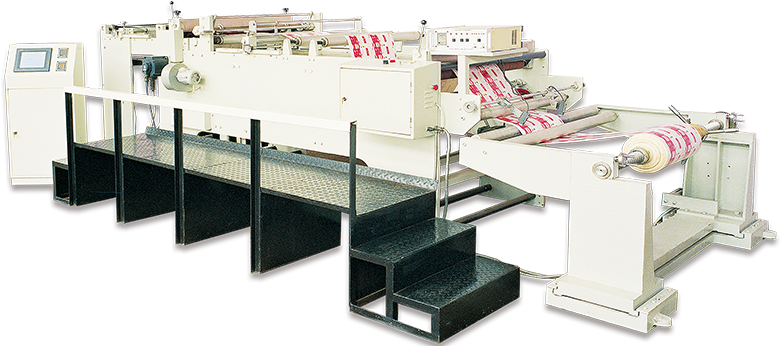

SDF Series Transverse Cutting Machine For PVC Flooring
For Paper/Film |Roll to Sheet |Transverse & Longitudinal Cutting |600-1200mm
  • Wide Material Compatibility
  • High-Slitting Precision
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Substrate
    film 0.1-0.5mm | paper 30-250gsm
  • Max unwinding dia
    Φ1600mm
  • Max feeding width
    600-1220mm
  • Transverse cutting length
    30-1000mm
  • Transverse operating frequency
    20-100 time/min
  • Transverse/Longitudinal cutting accuracy
    ±0.15mm
Product Features

This is a roll to sheet transverse cutting machine suitable for paper, plastic film and laminated material (PVC Flooring)

  • Fixed width and length, roll-to-sheet cutting for PVC flooring, beer labels, aluminum foil beer label, cigarette pack & soft label, card paper, wine pack, etc.

  • Profinet/EtherCAT control system: advanced PLC; User-friendly HMI; Busbar power supply, energy-saving and reliable.

  • Longitudinal cutting width adjustable.

  • Transverse cutting length settable, with auto correction sysytem.

  • Paper Stacking Platform.
