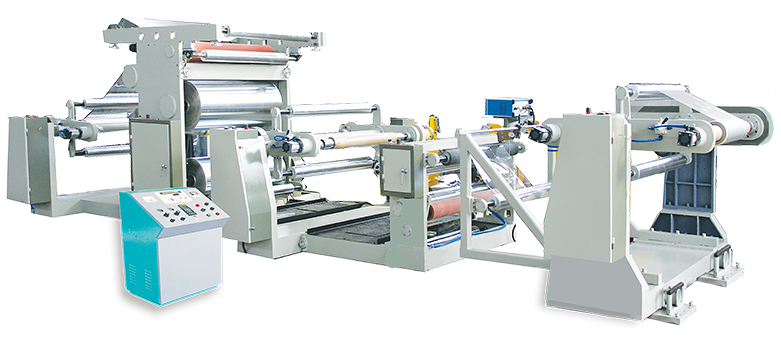

RTJ Series Hot Laminating Machine For PVC Flooring
For PVC Flooring | 1000-1500mm
  • Accurate Overprint
  • Automatic Splicing
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Substrate
    PVC, BOPP, PET 0.01-0.3mm
  • Max unwinding and winding dia
    Φ600mm
  • Max feeding width
    1000-1500mm
  • Max lamination speed
    15m/min
Product Features

This is a hot laminating machine suitable for producing PVC flooring.

  • Profinet/EtherCAT control system: PLC and converter control; User-friendly HMI;

  • Busbar power supply, energy-saving and reliable.

  • Full-closed-loop tension control by floating rollers.

  • Double station non-stop & Semi-automatic cutting and splicing.

  • Laminating with three-roll.

  • Heating roller thermostatically controlled by conduction oil.

  • Cooling system for shaping.

  • Remote diagnosis and maintenance service.
