YWDF Series Singe-Shaft Embossing And Slitting Machine
Single-shaft |High Speed |600-1000mm
  • Tight Wound
  • Auto Correction
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Max. unwind width
    600-1000mm
  • Max. unwind dia
    Φ1200mm
  • Max. slitting speed
    350m/min
  • Max embossing speed
    250m/ min
  • Max. rewind dia
    Φ600mm
  • Slitting alignment accuracy
    ≤±0.15mm
  • Surface flatness
    ≤±0.20mm
  • Rewinding Method
    Single-shaft
Product Features

Processing from embossing to slitting for cigarette tipping paper, inner liner, rolling paper, gum and chocolate wrappers and etc.

  • Tension of paper unwind: auto-controlled by floating rollers and frequency controlled motors (converter with built-in PLC function).

  • Tension of paper rewind: torque control by frequency controlled motors (converter with built-in PLC function for constant speed control).

  • User-friendly HMI.

  • Precise web guiding system (EPC/LPC system).

  • Pneumatic swing arm for roll loading/unloading at unwind and rewind station.

  • Embossing with steel-steel or steel-wool rollers, driven by frequency controlled motors.

  • Embossing pressure is controlled by a high precision hydraulic system.

  • Zero-speed tension holding, start/stop anti-loosening, easy operation.

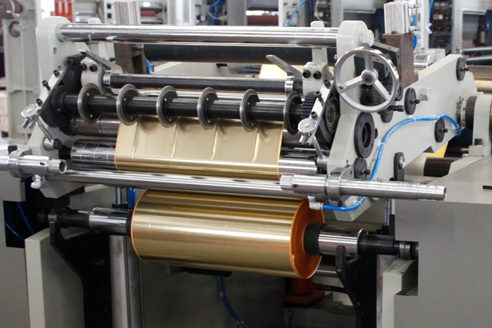

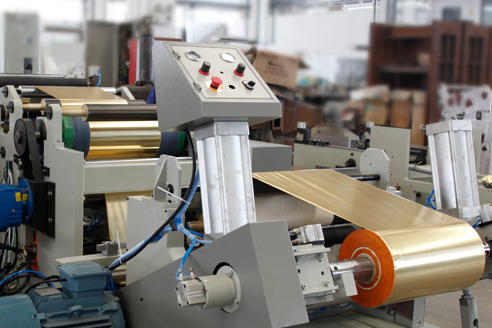

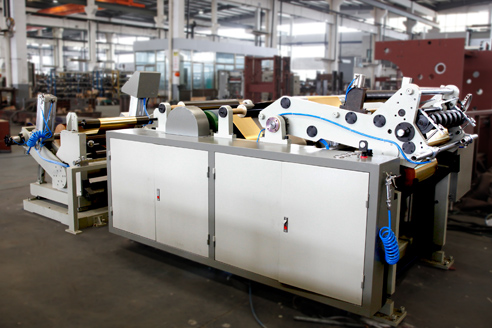

ywdf02.jpg    ywdf01.jpg    ywdf03.jpg
