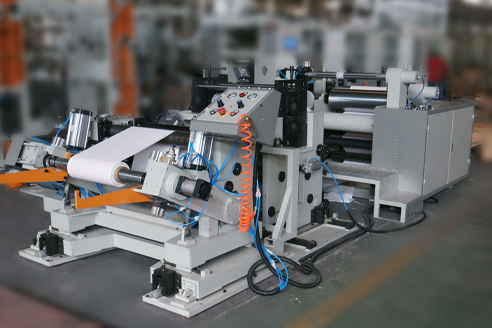

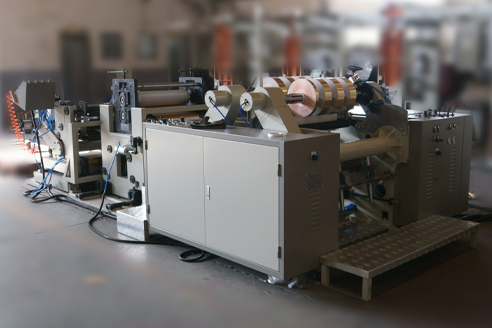

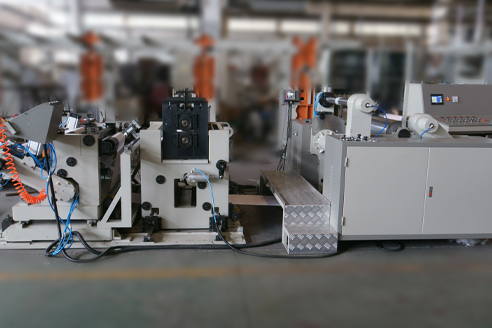

YWSF Series Double-Shaft Embossing And Slitting Machine
Double-shaft | High Speed | 600-1000mm
  • High Press-Slitting Speed
  • Tight Wound
  • Smooth Operation
  • User-Friendly
Technical Specifications
  • Max. unwind width
    600-1000mm
  • Max. unwind dia
    Φ1200mm
  • Max. slitting speed
    500m/min
  • Max embossing speed
    250m/ min
  • Max. rewind dia
    Φ500mm
  • Slitting alignment accuracy
    ≤±0.10mm
  • Surface flatness
    ≤±0.15mm
  • Rewinding method
    Double-Shaft
Product Features

Processing from embossing to slitting for cigarette tipping paper, inner liner, rolling paper, gum and chocolate wrappers and etc.

  • Profinet/EtherCAT control system: advanced PLC, servo driver & converter control; User-friendly HMl;

  • Busbar power supply, energy-saving and reliable.

  • Unwinding tension auto-controlled by floating rollers.

  • Rewinding tension (double-shaft) auto-controlled.

  • Precise web guiding system(EPC/LPC system).

  • Embossing with steel-steel or steel-wool rollers, driven by frequency controlled motors.

  • Embossing pressure controlled by hydraulic/manual pressurisation.

  • Easy roll unloading at rewind station, no need to remove the shaft.

  • Remote diagnosis and maintenance service.
